REVIT - Custom Architectural Column with Reveal and Sweep


The CADclip below illustrates a custom REVIT Architectural Column Family that has two type parameters for Column Width and Depth and 7 Instance parameters for Column Material, Sweep Material, Sweep Radius, Sweep Height, Reveal Height, Reveal Vertical Dimension and Reveal Width Dimension.

We start in the project and then open the family to have a look at the guts.

Friday, November 27, 2009

CADclip - REVIT Parametric Massing Study

I am VERY EXCITED about REVIT 2010 Massing and particularly the fact that you can create parametric Loadable Masses.
This effectively allows you to create a parametric prototype of a building, load it into a project, copy it around and manipulate each instance of the mass. Then for each instance of the building Mass you can generate and schedule floors, walls, curtain systems, roofs, floor areas, volumes, surface areas and much more.
It's all demonstarted in the CADclip below !

Wednesday, November 25, 2009

REVIT Void Geometry Trick

Below is a great CADclip on how to work around the fact that you cannot turn off the visibility of void geometry in a family. Instead you just use a parameter (instance) to move the void outside the solid geometry.

Monday, November 23, 2009

REVIT 2010 Massing Study Demo

The CADclip below demonstrates just how slick and simple it is to mass out a building with a curtain system and schedule floor areas, perimeters, volumes and wall surface areas in a matter of minutes.

Friday, November 20, 2009

REVIT - Placing Model Text on a Curved Wall

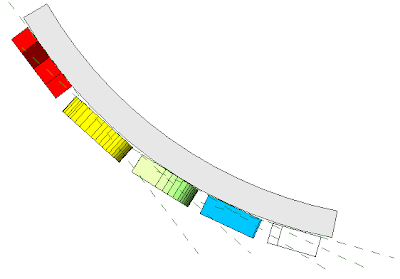

You cannot place model text on a curved wall but you can place model text on reference planes so the work around is to create a series or reference planes tangent to the curved wall and place one letter on each reference plane. Takes a little bit of time but it works. In the example shown above I named each reference plane according to the appropriate letter ie: ‘M’ ‘O’ ‘D’ ‘E’ ‘L’, then 'set the current reference plane' before placing the model text letter. You can fine tune the ‘plan’ positioning by moving or rotating the reference planes after the letters have been place. You can also nudge the letters around within the reference plane. I changed the ‘material’ of each letter to achieve the color effect. See images below.

Tuesday, November 17, 2009

CADclip - REVIT Family Type Catalog Files

The majority of REVIT families should take advantage of 'Type Catalogs'.
This can be used in all 3 REVIT disciplines as follows:
1. You can quickly create 10's to 100's of family types.
2. You can load only the types you need when you load the family.
3. It keeps the project file size down.
ENJOY !

Tuesday, November 10, 2009

CADclip - Solid Sweep Tips

Have you even come across the error above?
Below is a CADclip on a tip when applying a solid sweep where a straight segment in the sweep path transitions to a non tangent arc. The underlying tip is, if you keep running into the "can't create sweep" where you have a "path" and "profile" that do abide by all the rules, use "sketch path" instead of "pick path" and you find the sweep works ok. I suppose if you ever get the error anytime using solod sweep swith from 'pick' path to 'sketch' path anyway and see if it solves the problem. Always remember to check your work plane as well.

CADclip - Eyebrow Dormer by Sloping Solid Blend

Below are a couple CADclips on creating the Eyebrow Dormer shown above.
