REVIT Footing Corners Will Not Mitre or Join



If you have ever come across this REVIT problem it can be very frustrating.

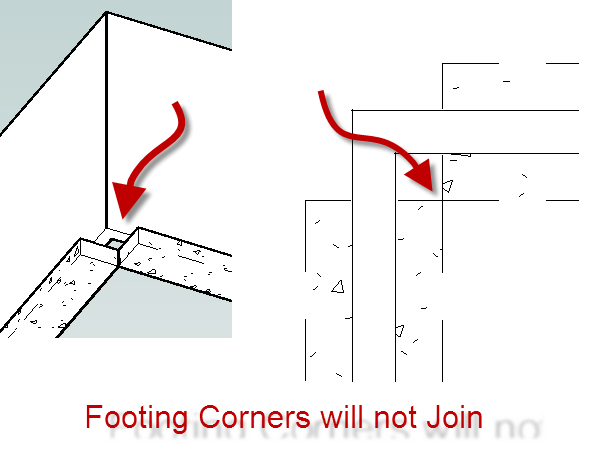

You cannot get the footing corners to mitre or join properly !

This problem is caused when the footing Type Property "Structural Usage" is set to "Retaining" instead of "Bearing".

Change it to "Bearing" and problem solved.
